Double Seal for Mill

SEAL TYPE: 531/D&531/D/B

Balance Pusher Seals using for Sealing Environment. Double Seals are excellent with high RPM Operation in Full Vacuum and Pressure. These Seals are a Multiple Spring Tandem Arrangement with ‘O’ Ring as secondary Sealing member. The design may either without bearing (Type 531/D) or with integral bearing (531/D/B). Various Elastomer can be offer for various Liquid applications.

Seal Type 531/D and 531/D/B Mechanical Seals are designed for Side Entry Drives in Dyno mills, Sand mills and Mixtures. Compact Economical Cartridge Double Mechanical Seal for Side entry sealing equipments. Seal Type 531/D/B Design Incorporate with location of Bearings very close to the Seal. Complete Pre-assembled Tested Unit ready for installation. These Seal are used for Exclusive Solid Seal Faces, Stationary Seats, thus Lowest Level of Seal Face distortion when Expose to Compressive Load and Thermal Pressure. The Cooling Chamber of Seals also having a Standard Feature which helps to maintain Cool Environment around the Seal.

  • Seal Ring Faces : Carbon and SiC
  • Seat Faces : SiC and and TC
  • Elastomer : Viton, TTV and FEP
  • Shaft Dia. : 50mm to 85mm
  • Pressure : Full Vacuum to 10 bar
  • Temperature : -30°C to 200°C
  • Speed: 1500 r.p.m.

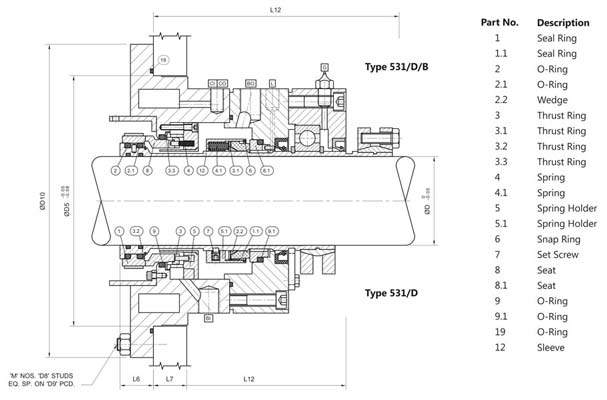

Double Seal for Mill - TYPE: 531/D&531/D/B
