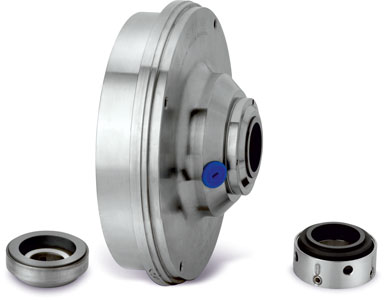

Double Semi Cartridge Seal With Back Plate

SEAL TYPE: ZR200/D

Designed to handle solids up to 60% by weight. Specially designed stuffing box in this particular seal type ZR200/D which gives better seal life and performance. Hydraulically balanced faces for excellent seal reliability. Springs are located outside the process. Flushing helps to lubricate or cool the seal faces from atmospheric side of mechanical seal. They are cost effective for basic application such as Centrifugal Pumps and other Equipment with Rotating Shaft, Handling Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry, General Chemical Slurry

  • Slurry seal.
  • Standardized modular design.
  • Single Acting Mechanical Seals.
  • Mechanical Seals.
  • Inside Mounted
  • Seal Ring Faces : SiC, Carbon and TC
  • Seat Faces :SiC and TC
  • Elastomer : Viton, TTV, FEP and FFKM
  • End fitting MOC : SS 316,HAST-C and Carpenter 42
  • MOC : SS 316 – CHANGE OF MOC ON REQUEST
  • Shaft Dia. : 20mm to 80mm
  • Pressure : Full Vacuum to 8 bar
  • Temperature : -30°C to 260°C (Depending upon Elastomer)
  • Speed: 3000 r.p.m.

Double Semi Cartridge Seal With Back Plate Type ZR200/D have been carefully designed and manufactured with great precision and care. Please Visit us to see our full range of Double Semi Cartridge Seal With Back Plate Type ZR200/D to meet all your requirements. We are the manufacturer of Double Semi Cartridge Seal With Back Plate Type ZR200/D in Mumbai INDIA.

Double Semi Cartridge Seal With Back Plate - TYPE: ZR200/D
