Dry Running Seal

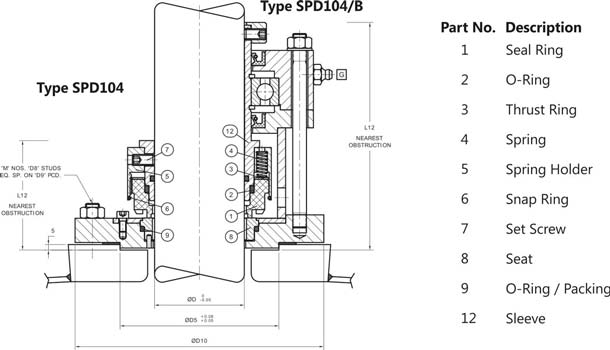

Seal Type SPD104 and SPD104/B Mechanical Seals are designed for Top, Bottom and Side Entry Drives in Agitators, Mixers OR Blenders in case when Non-Aggressive and Non-Hazardous Media are sealed with the use of Cooling Liquid Preventing against Dry Running. Construction of MOC designed of these Seals purpose of holding whole Rotary Parts together with the help of Snap Rings which make easy for Installation and Removal.
Balance Pusher Seals used for Sealing Environment. Dry Run Seals are excellent in High Speed Seals for Operation in Vacuum Conditions as well as Undemanding Mixers applications. In SPD104/J & SPD104/B/J Cool Set designed Mating Ring help to dissipate the Heat from Faces. This Type Seal design may use either without Bearing OR with Integral Bearing. These Seals are a Multiple Spring basically externally Mounted Seal with ‘O’ Ring as Secondary Sealing member. Various Elastomers can be offered for various media application
- Seal Ring Faces : Spl. Carbon
- Seat Faces : SiC
- Elastomer : Viton, TTV, FEP and FFKM
- MOC : SS 316 – CHANGE OF MOC ON REQUEST
- Shaft Dia. : 20mm to 150mm
- Pressure : Full Vacuum to 8 bar
- Temperature : -30°C to 140°C
- Speed: 900 r.p.m.
