Dry Running Seal For Glass Lined

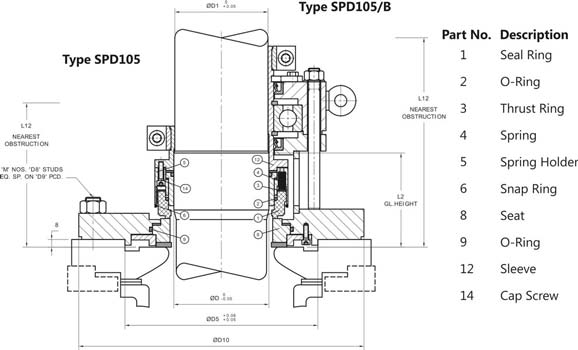

Seal Type SPD105 and SPD105/B Mechanical Seals are designed for Top Entry Drives in Glass Lined Vessel. Compact Economical Cartridge Mechanical Seal for Glass Lined Vessel. These Seal specially designed for any mixed and pressurized liquid in Vessel with Top Entry Agitators where no leakage of Highly Acidic Process Gas OR Fluids to the Environment can be tolerated. Complete Pre-assembled Tested Unit ready for installation. These Seal are used for Exclusive Solid Seal Faces, Stationary Seats, thus Lowest Level of Seal face distortion when Expose to Compressive Load and Thermal Pressure.
Balance Pusher Seals used for Sealing Environment. Dry Run Seals are excellent in High Speed Seals for Operation in Vacuum Conditions as well as Undemanding Mixers applications. In SPD104/J & SPD104/B/J Cool Set designed Mating Ring help to dissipate the Heat from Faces. This Type Seal design may use either without Bearing OR with Integral Bearing. These Seals are a Multiple Spring basically externally Mounted Seal with ‘O’ Ring as Secondary Sealing member. Various Elastomers can be offered for various media application
- Seal Ring Faces : Carbon and SiC
- Seat Faces : SiC and Ceramic
- Elastomer : Viton, TTV, FEP and FFKM
- MOC : SS 316 – CHANGE OF MOC ON REQUEST
- Shaft Dia. : 20mm to 150mm
- Pressure : Full Vacuum to 8 bar
- Temperature : -30°C to 150°C
- Speed: 250 r.p.m.
