Multi Spring Mechanical Seal

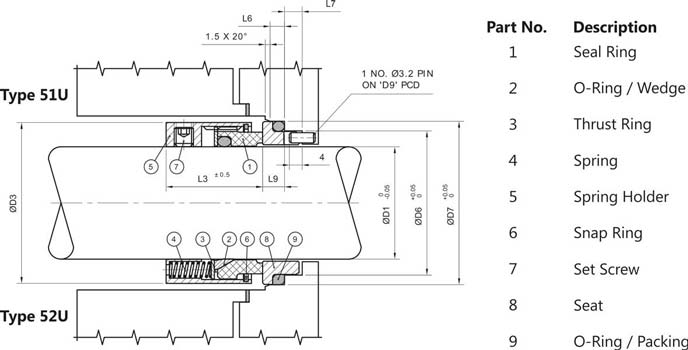

Seal Type 51U is recommended for clean media application. Seal Type 52U is Standard for using where Corrosive Liquid are being Processed. PTFE Wedge Construction of the Secondary Sealing Member provides Universal service application. Construction of these Seal designs holds whole Rotary Parts together with the help of Snap Rings which is make easiest of Installation and Removal. These Type of Seal designed and used for Petroleum Products, Low Aggressive Chemicals and Refrigerants in Centrifugal pumps and other Equipment with Rotating Shafts. Multi Spring Mechanical Seal are carefully designed at Superproof Seals Engineering.
- Seal Ring Faces : Cabon, SiC and TC
- Seat Faces : Ceramic, SiC and TC
- Elastomer : Viton, PTFE, GFT, EPDM, NBR, Buna-N and FFKM
- MOC : SS 316, Hast -C and Alloy – 20
- Shaft Dia. : 10mm to 100mm
- Pressure : Up to 10 bar
- Temperature : -20°C to 260°C (Depending upon Elastomer)
- Speed: 3000 r.p.m.
