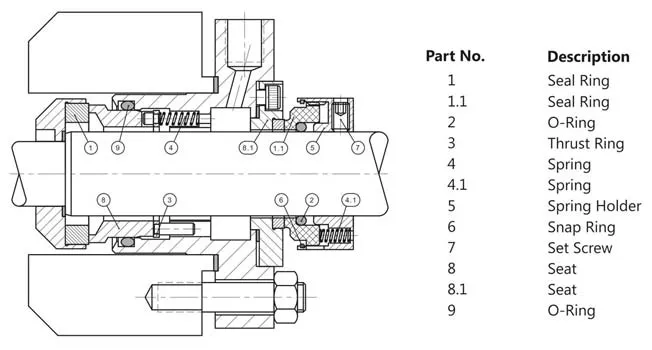

Double Semi Cartridge Seal
TYPE: ZR100/D
Back to Overview
Designed to handle solids up to 20% by weight. Hydraulically balanced faces for excellent seal reliability. Springs are located outside the process. Flushing helps to lubricate or cool the seal faces from atmospheric side of mechanical seal. They are cost effective for basic application such as Centrifugal Pumps and other Equipment with Rotating Shaft, Handling Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry, General Chemical Slurry.
FEATURES
- Slurry seal.
- Standardized modular design.
- Single Acting.
- Mechanical Seals.
- Inside Mounted
Materials
- Seal Ring Faces : TC and SiC
- Seat Faces : SiC and TCs
- Elastomer : Viton, TTV, FEP and FFKM
- End fitting MOC : SS 316,HAST-C and Carpenter 42
- MOC : SS 316 – CHANGE OF MOC ON REQUEST
Operating Capabilities
- Shaft Dia. : 20mm to 80mm
- Pressure : Full Vacuum to 8 bar
- Temperature : -30°C to 260°C (Depending upon Elastomer)
- Speed: 3000 r.p.m
