Multi Spring Mechanical Seal

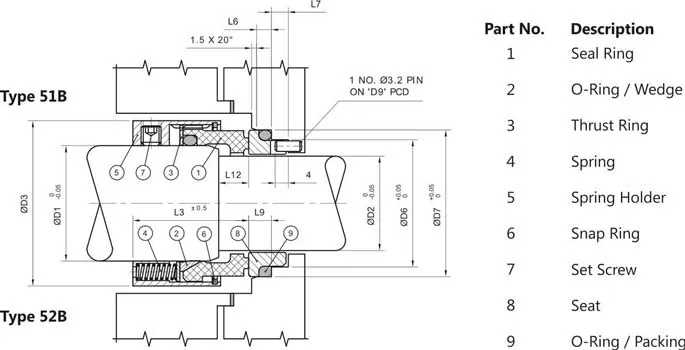

TYPE: 51B & 52B
Seal Type 51B is recommended for clean media application. We are among top manufactures of Multi Spring Mechanical Seal. Type 52B is Standard for using where Corrosive Liquid are being Processed . PTFE Wedge Construction of the Secondary Sealing Member provides Universal Service application. Construction of these Seal designs hold whole Rotary Parts together with the help of Snap Ring which is installation and removal is make easiest. These Type of Seal designed and used for Petroleum Products, Low Aggressive Chemicals and Refrigerants in Centrifugal Pumps and other Equipment with Rotating Shafts.
FEATURES
- Seal Ring Faces : Cabon, GFT, SiC and TC
- Seat Faces : Ceramic, SiC and TC
- Elastomer : Viton, PTFE, GFT, EPDM, NBR, Buna-N and FFKM
- MOC : SS 316, Hast -C and Alloy – 20
Materials
- Seal Ring Faces : Cabon, SiC and TC
- Seat Faces : Ceramic, SiC and TC
- Elastomer : Viton, PTFE, GFT, TTV, EPDM, NBR, Buna-N
- MOC : SS 316
Operating Capabilities
- Shaft Dia. : 10mm to 100mm
- Pressure : Up to 25 bar
- Temperature : -20°C to 260°C
- Speed: 3000 r.p.m.
Download our comprehensive product catalogue to explore complete technical specifications, material options, and design details for all types of mechanical seals and sealing solutions.
