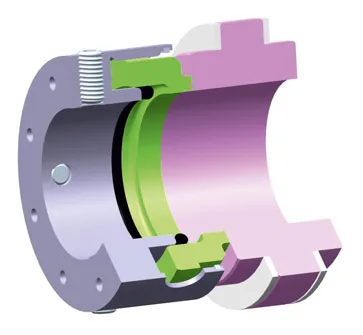

Reverse Balance Multi Spring Seal

TYPE: RBMS-73

Back to Overview

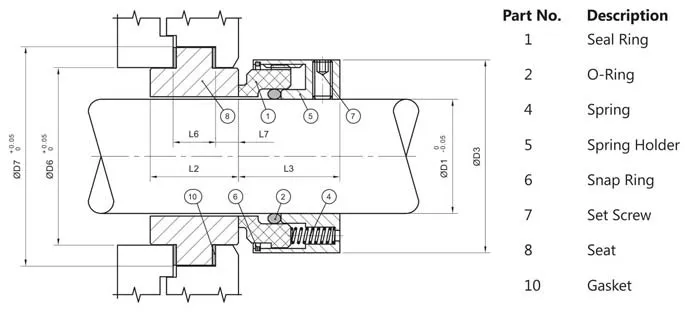

RBMS-73

FEATURES

  • Single Acting Mechanical Seal.
  • Dual Directional Mechanical Seal.
  • Outside Mounted Mechanical Seal.
  • Reverse Balanced Design.
  • Multi Spring design Mechanical Seal .

Materials

  • Seal Ring Faces : Carbon and SiC
  • Seat Faces : Ceramic and SiC
  • Elastomer : Viton, EPDM, TTV, FEP and FFKM
  • MOC : SS 316, Hast -C and Alloy – 20

Operating Capabilities

  • Shaft Dia. : 16mm to 70mm
  • Pressure : Up to 8 bar
  • Temperature : Upto 120°C
  • Speed: 3000 r.p.m.

Download our comprehensive product catalogue to explore complete technical specifications, material options, and design details for all types of mechanical seals and sealing solutions.

Download Catalogue
