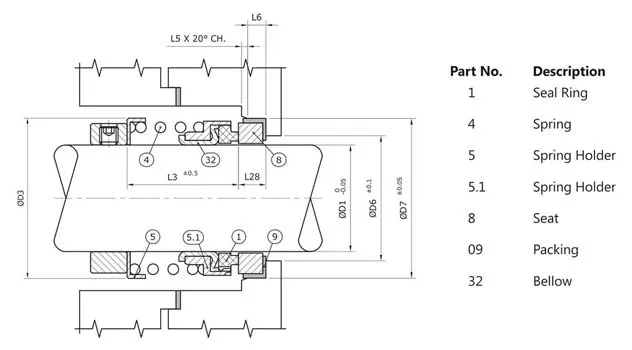

Rubber Bellow Mechanical Seal
TYPE: 22
The Seal Type 22 is a Compact Single Spring Rubber Bellows Mechanical Seals for universal general purpose, Water / Water Based solution like Oils, Fuels and Other Fluids even with some Content with Abrasive and for a very wide operating condition designed destined for Centrifugal pump. Rotary Equipment and Industrial application (Food Processing, Water Systems, Waste Water Treatment for Petrochemical Processing, Pulp and Paper.
FEATURES
Single, low cost and mass produced Mechanical Seal with Rubber Bellow. Central Point Non-Clogging Coil Spring Seal. Spring Design Seal is suitable for duel-direction of Shaft Rotation. Bellow Design Seals for Pressure supported and eliminates folds. Bellow Seals Protecting against Twisting. Unitize, easy-to-fit design seals
Materials
- Seal Ring Faces : Cabon, SiC and TC
- Seat Faces : NiR, Ceramic, SiC and TC
- Elastomer : Viton, Neoprene, EPDM, NBR and Buna-N
- MOC : SS 304 / SS 316
Operating Capabilities
- Shaft Dia. : 10mm to 100mm
- Pressure : Up to 8 bar
- Temperature : -20°C to 180°C
- Speed: 3000 r.p.m.
