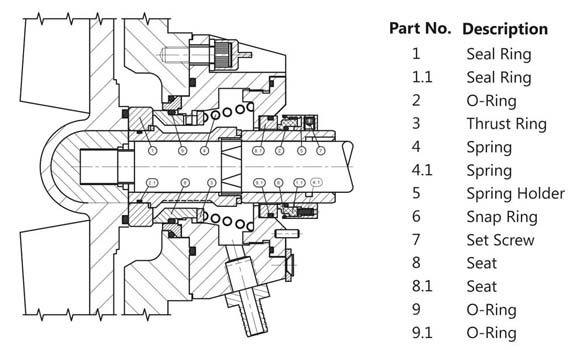

Slurry Seal For Non-Metallic Pump
Designed to handle abrasive particles up to 30% by weight. Specially designed Back plate of pump and Impeller in this particular seal type ZR300/D which gives better seal life and performance. Hydraulically balanced faces for excellent seal reliability. Specially coated spring is located outside the process. Flushing helps to lubricate the seal faces from atmospheric side of mechanical seal.
- Slurry seal.
- Double seal for Non metallic pump.
- Standardized modular design.
- Inside Mounted.
- Seal Ring Faces : SiC and Carbon
- Seat Faces :SiC and Ceramic
- Elastomer : Viton, TTV, FEP and FFKM
- MOC : SS 316, PVDF – CHANGE OF MOC ON REQUEST
- Shaft Dia. : 20mm to 80mm
- Pressure : Full Vacuum to 8 bar
- Temperature : Upto 180°C
- Speed: 3000 r.p.m.
Specially developed for steel plants on CRM (Cold Rolling Mill) in acid circulation pumps for PP, PVDF & PFA Lining Pump.
What is Slurry Seal ? Slurry Seal For Non-Metallic Pump Seal Type ZR300/D IMS have been carefully designed and manufactured with great precision and care. Please Visit us to see our full range of Slurry Seal For Non-Metallic Pump Seal Type ZR300/D IMS to meet all your requirements. We are the manufacturer of Slurry Seal For Non-Metallic Pump Seal Type ZR300/D IMS in Mumbai INDIA.
