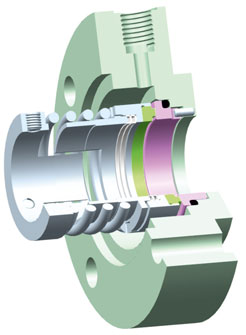

Single Coil Spring Seal

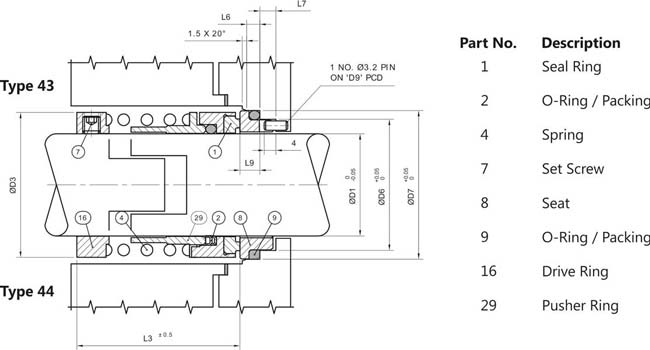

SEAL TYPE: 43 & 44
The Seal Type 43 with Single Spring designed and is depended on the Shaft Rotation. Looking from Sliding Face of the Rotating Seal Ring is designed as right handed Shaft Rotation needs a right hand Spring and Vice-Versa. Superproof seals manufacture single coil spring mechanical seal in INDIA. In Seal Type 43 (‘O’ ring type) is designed as Torque Transmission from Drive Collar to Seal Ring to be done through Sturdy Drive Lugs. In Seal Type 44 (‘V’ Packing Type) is designed as Torque Transmission from Drive Collar to Seal Ring to be done through Sturdy Drive Lugs. These Seals are Cost Effective Seals for Basic Application Equipment such as Centrifugal Pump and other Equipment with Rotating Shaft, Handling Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry and General Chemical Slurry.
Features
Single Acting Unbalance Pusher Mechanical Seals.- Inside Mounted Mechanical Seals.
- Spring Design depended on Shaft Rotation.
- Type 44 seal is Universal Chemical Compatibility due to deign of PTFE Elastomer
Materials
- Seal Ring Faces : Cabon, SiC and TC
- Seat Faces : Ceramic, SiC and TC
- Elastomer : Viton, PTFE, GFT, TTV, EPDM, NBR, Buna-N
- MOC : SS 316
Operatiing Capabilities
- Shaft Dia. : 10mm to 100mm
- Pressure : Up to 10 bar
- Temperature : -20°C to 150°C
- Speed: 3000 r.p.m.
